Description

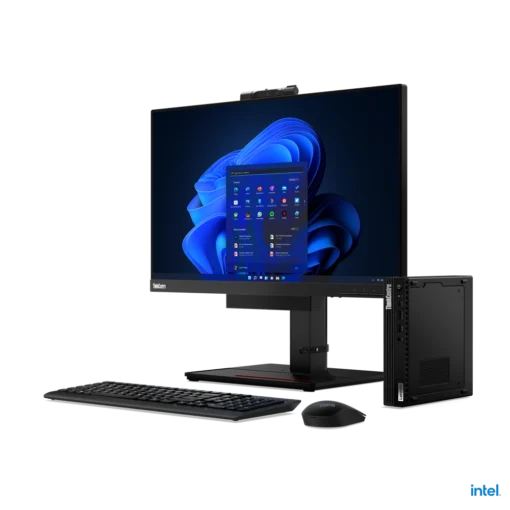

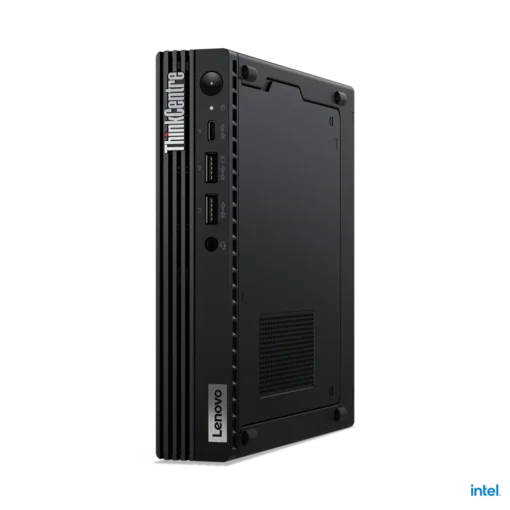

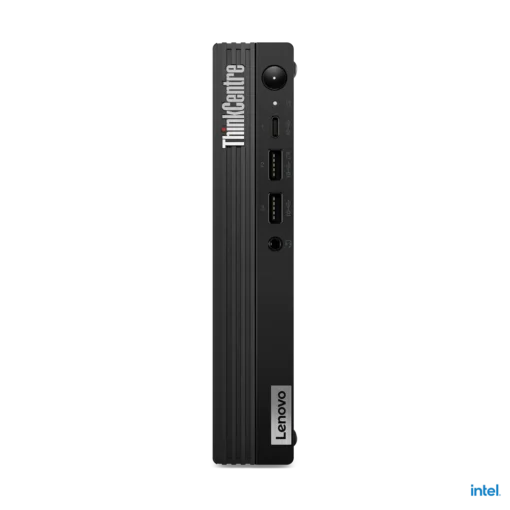

ThinkCentre M90q Gen 3

Part Number : 11U5000JTX



Monitör dahil değildir.



PERFORMANCE
Processor
Intel Core i7-12700T, 12C (8P + 4E) / 20T, P-core 1.4 / 4.6GHz, E-core 1.0 / 3.4GHz, 25MB
Graphics
Integrated Intel UHD Graphics 770
Chipset
Intel Q670 Chipset
Memory
1x 16GB SO-DIMM DDR5-4800
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR5-4800
Storage
512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0
Storage Support
Up to three drives, 1x 2.5″ HDD + 2x M.2 SSD • 2.5″ HDD up to 1TB • M.2 SSD up to 2TB each
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC256VB codec
Speakers
2Wx1
Power Supply
135W 89% Adapter
DESIGN
Keyboard
USB Traditional Keyboard, Black, Turkish
Mouse
USB Calliope Mouse, Black
Expansion Slots
  • One PCIe 4.0 x8, low-profile
  • Two M.2 PCIe Gen 4×4 slots (for SSD)
  • One M.2 slot (for WLAN)
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
Toolless Chassis Screw
Dust Filter
None
Mounting
1x VESA Mount
IO Box
None
Form Factor
Tiny (1L)
Dimensions (WxDxH)
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)
Weight
1.25 kg (2.76 lbs)
CONNECTIVITY
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
Intel Wi-Fi 6E AX211, 11ax 2×2 + BT 5.1, vPro
Front Ports
  • 1x USB 3.2 Gen 2
  • 1x USB 3.2 Gen 2 (Always On and [email protected] charging)
  • 1x USB-C 3.2 Gen 2
  • 1x headphone / microphone combo jack (3.5mm)
Rear Ports
  • 2x USB 3.2 Gen 1 (one supports Smart Power On)
  • 2x USB 3.2 Gen 2
  • 1x HDMI 2.1 TMDS
  • 1x DisplayPort 1.4
  • 1x Ethernet (RJ-45)
Optional Rear Ports (configured)
1x Serial + 1x DP 1.2
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington Security Slot, 3 x 7 mm
Chassis Intrusion Switch
Chassis Intrusion Switch
MANAGEABILITY
System Management
Intel vPro Enterprise
SERVICE
Base Warranty
3-year, Onsite
Included Upgrade
3Y Premier TC DT/AIO WHB (CPN) (5WS1B09492)
CERTIFICATIONS
Green Certifications
  • EPEAT Silver
  • ENERGY STAR 8.0
  • ErP Lot 3
  • TCO Certified 9.0
  • RoHS compliant
Mil-Spec Test
MIL-STD-810H military test passed
SOFTWARE
Operating System
Windows 11 Pro, Turkish / English
Bundled Software
None
