Description

ThinkCentre M70q Gen 2

Part Number : 11MY002GTX

PERFORMANCE
Processor
Intel Core i5-11400T (6C / 12T, 1.3 / 3.7GHz, 12MB)
Graphics
Integrated Intel UHD Graphics 730
Chipset
Intel B560 chipset
Memory
1x 8GB SO-DIMM DDR4-2666
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR4-2933
Storage
256GB SSD M.2 2280 PCIe NVMe Opal
Storage Support
Up to two drives, 1x 2.5″ HDD + 1x M.2 SSD • 2.5″ HDD up to 1TB • M.2 SSD up to 2TB
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC233VB codec
Speakers
1.5Wx1
Power Supply
65W 89% Adapter
DESIGN
Keyboard
USB Traditional Keyboard, Black, Turkish
Mouse
USB Calliope Mouse, Black
Expansion Slots
Two M.2 slots (one for WLAN, one for SSD)
Case Color
Black
Stand
None
Adapter Cage
None
Toolless Chassis Screw
Toolless Chassis Screw
Dust Filter
None
Mounting
VESA Mount
IO Box
None
Form Factor
Tiny (1L)
Dimensions (WxDxH)
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)
Weight
1.25 kg (2.76 lbs)
CONNECTIVITY
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
Intel 9560 11ac, 2×2 + BT5.1

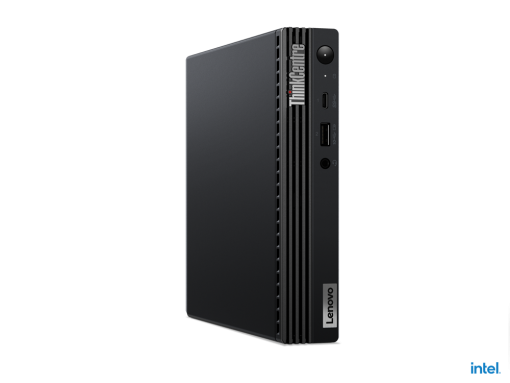

Front Ports
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x USB 3.2 Gen 2 (Always On and fast charge)
  • 1x USB-C 3.2 Gen 1

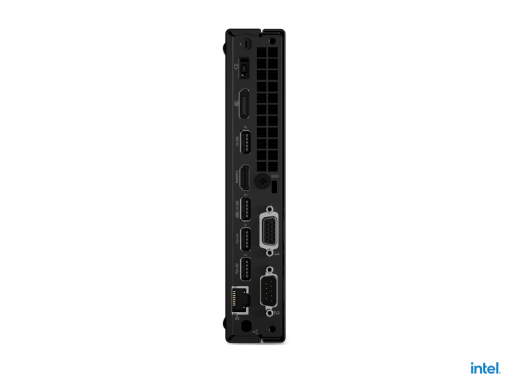

Rear Ports
  • 2x USB 3.2 Gen 2
  • 1x HDMI
  • 1x DisplayPort
  • 1x Ethernet (RJ-45)
  • 2x USB 3.2 Gen 1
Optional Rear Ports (configured)
None
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified
Fingerprint Reader
No fingerprint reader
Physical Locks
Kensington Security Slot
Kensington Cable Lock
None
Chassis Intrusion Switch
Chassis Intrusion Switch
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Onsite
Included Upgrade
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR 8.0
  • EPEAT Gold
  • RoHS compliant
Mil-Spec Test
MIL-STD-810H military test passed
SOFTWARE
Operating System
None
Bundled Software
None
