Description

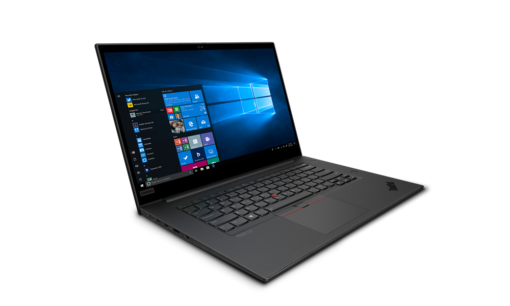

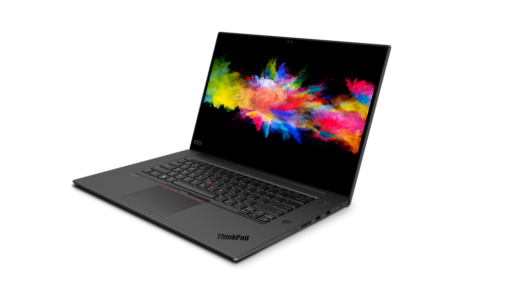

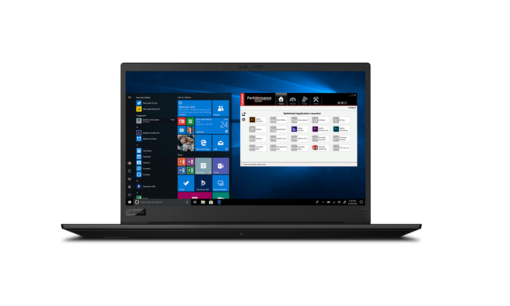

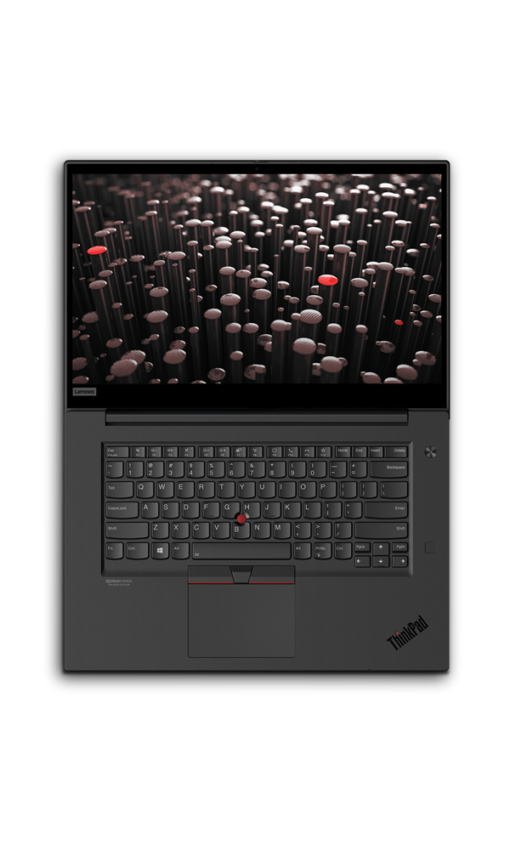

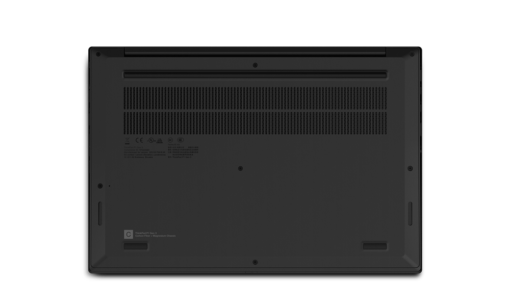

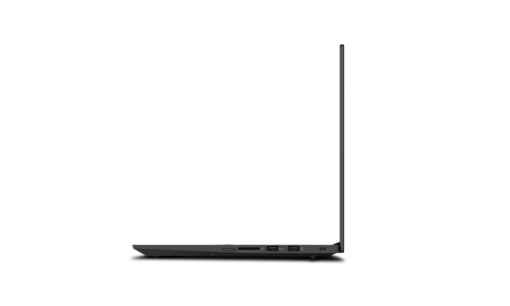

ThinkPad P1 Gen 3

Part Number : 20TH0018TX

PERFORMANCE
Processor
Intel Core i9-10885H (8C / 16T, 2.4 / 5.3GHz, 16MB)
Graphics
NVIDIA Quadro T2000 Max-Q 4GB GDDR6
Chipset
Intel WM490
Memory
1x 16GB SO-DIMM DDR4-2933 Non-ECC
Memory Slots
Two DDR4 DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR4-2933
Storage
1TB SSD M.2 2280 PCIe NVMe Opal2
Storage Support
Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB
RAID Preset
None
Card Reader
SD Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3286 codec
Speakers
Stereo speakers, Dolby Atmos
Camera
IR & 720p with ThinkShutter
Microphone
2x, Array
Battery
Integrated 80Wh
Max Battery Life
MobileMark 2014: 15.9 hr MobileMark 2018: 12 hr JEITA 2.0: 17.1 hr
Power Adapter
170W Slim Tip (3-pin)
DESIGN
Display
15.6″ UHD (3840×2160) OLED 400nits AR (anti-reflection) / AS (anti-smudge), 100% DCI-P3 Gamut, Dolby Vision, HDR
Touchscreen
10-point Multi-touch
Color Calibrator
Factory Color Calibration on UHD panels

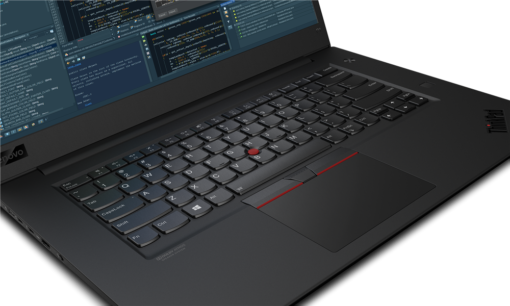

Keyboard
Backlit, Turkish
Case Color
Black

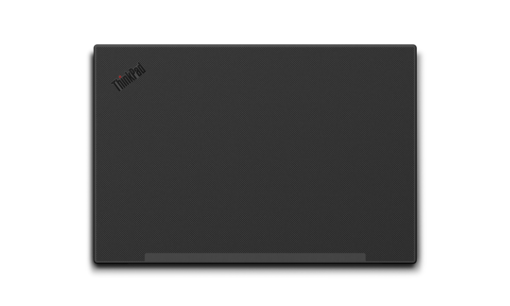

Case Material
Carbon Fiber (Woven pattern) + PC + PPS Hybrid
Pen
Lenovo Pen Pro
Dimensions (WxDxH)
361.8 x 245.7 x 18.7 mm (14.24 x 9.67 x 0.74 inches)
Weight
1.8 kg (3.97 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (Adapter Needed)
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.1
WWAN
Fibocom L860-GL
SIM Card
None
NFC
None

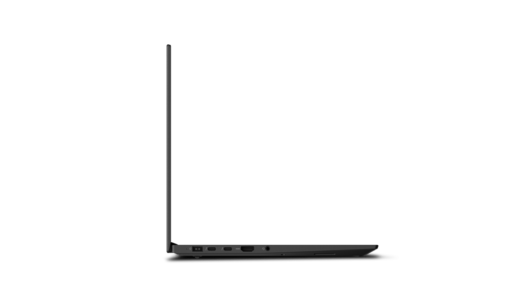

Standard Ports
  • 2x USB 3.2 Gen 1 (one Always On)
  • 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery and DisplayPort 1.4)
  • 1x HDMI 2.0
  • 1x SD card reader
  • 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)
1x Nano-SIM card slot (WWAN model)
Docking
Various docking solutions supported via Thunderbolt or USB-C. For more compatible docking solutions, please visit Docking for ThinkPad P1 Gen 3
Monitor Cable
None
SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Security Slot
MANAGEABILITY
System Management
Intel vPro
SERVICE
Base Warranty
3-year, Depot
Included Upgrade
3Y Premier TP WS WHB (CPN) (5WS1B09494)
