Description

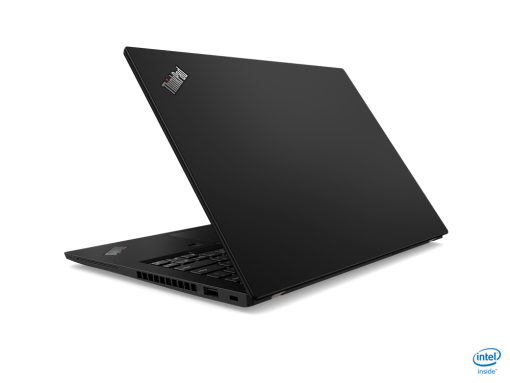

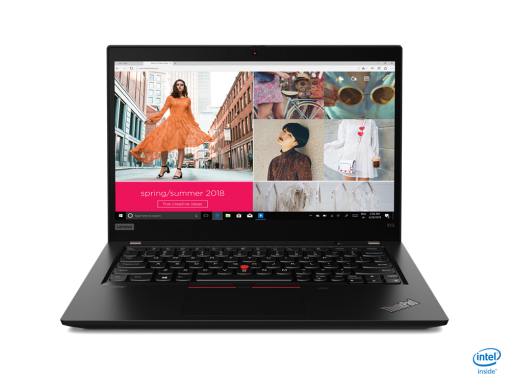

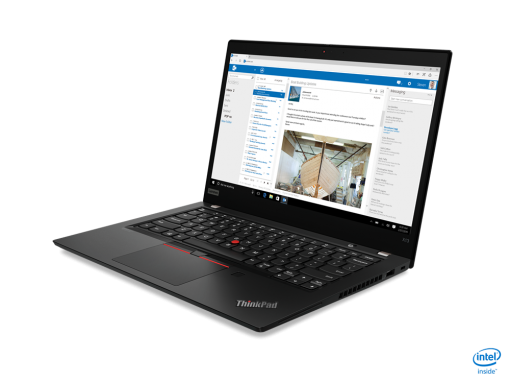

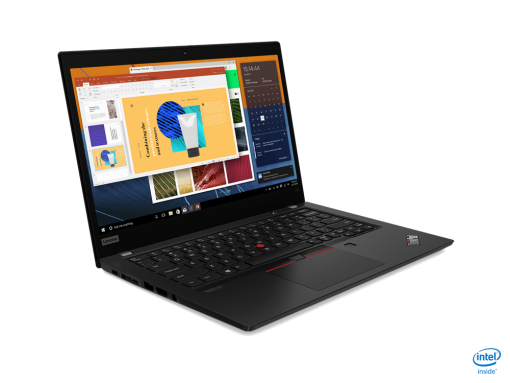

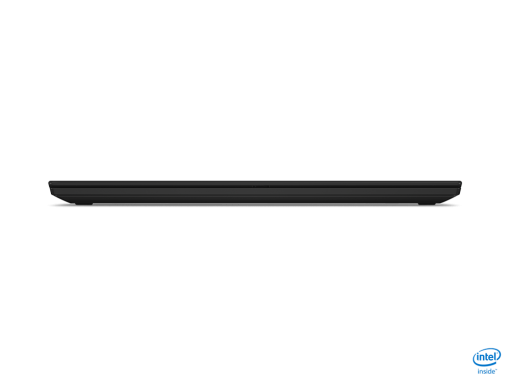

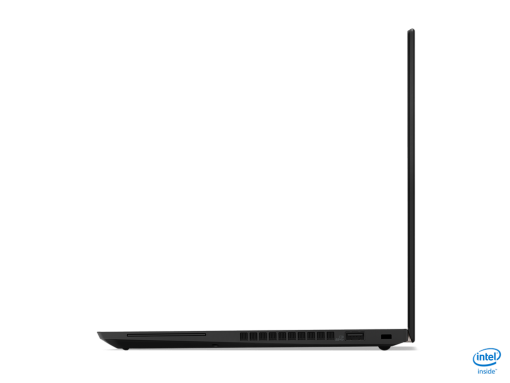

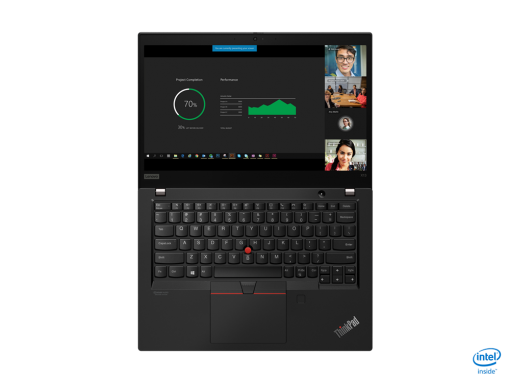

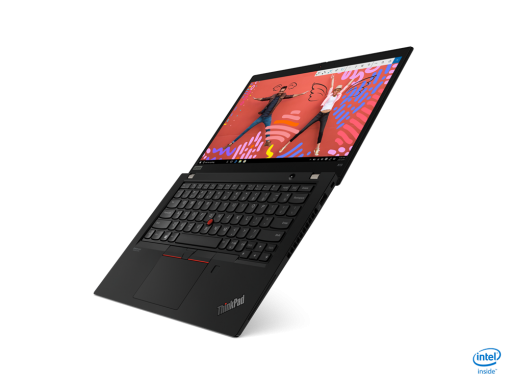

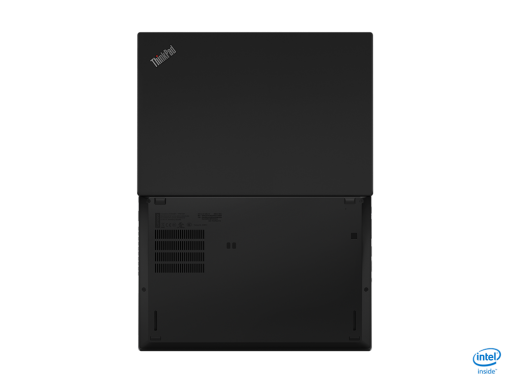

ThinkPad X13 Gen 1 (Intel)

Part Number : 20T2003HTX
PERFORMANCE
Processor
Intel Core i5-10210U (4C / 8T, 1.6 / 4.2GHz, 6MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
8GB Soldered DDR4-2666
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
8GB soldered memory, not upgradable
Storage
256GB SSD M.2 2280 PCIe x4 NVMe Opal
Storage Support
One drive, up to 512GB M.2 2242 SSD or 2TB M.2 2280 SSD, optional Intel Optane Memory integrated with SSD, M.2
Card Reader
MicroSD Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3287 codec
Speakers
Stereo speakers, 1W x2, Dolby Audio
Camera
720p with ThinkShutter
Microphone
2x, Array
Battery
Integrated 48Wh
Max Battery Life
MobileMark 2014: 15.9 hr MobileMark 2018: 10.45 hr JEITA 2.0: 16 hr
Power Adapter
65W USB-C (3-pin)
DESIGN

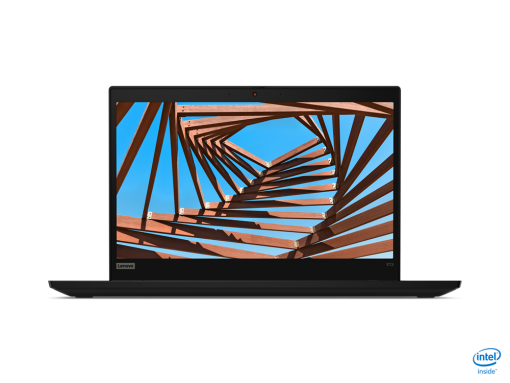

Display
13.3″ FHD (1920×1080) IPS 300nits Anti-glare
Touchscreen
None
Keyboard
Backlit, Turkish
Case Color
Black
Case Material
PPS (Top), Magnesium-aluminium (Keyboard Cover), Magnesium-aluminium (Bottom)
Dimensions (WxDxH)
Dimensions Models
FHD non-touch models with PPS case models
312.0 x 217.2 x 16.9 mm (12.28 x 8.55 x 0.67 inches)
FHD non-touch models with carbon fiber case models
311.9 x 217.0 x 16.5 mm (12.28 x 8.54 x 0.65 inches)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (Adapter Needed)
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.2
WWAN
Fibocom L850-GL
SIM Card
None
NFC
None

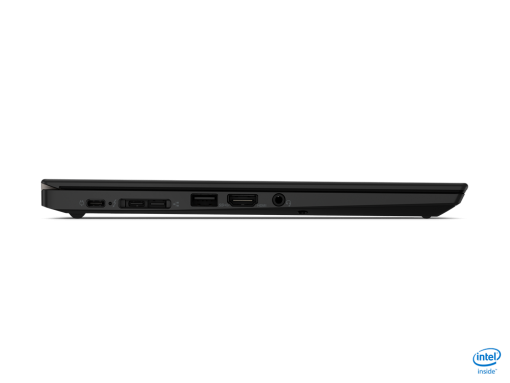

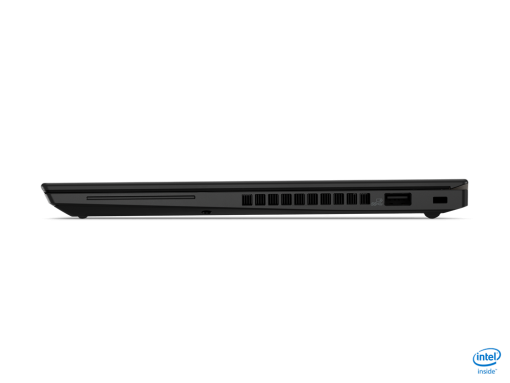

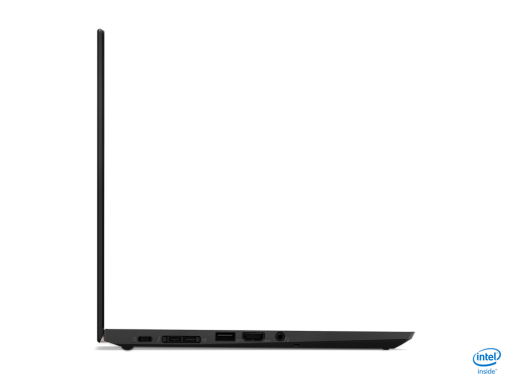

Standard Ports
  • 1x Side docking connector
  • 1x USB-C 3.2 Gen 1 (support data transfer, Power Delivery and DisplayPort 1.2)
  • 1x Ethernet extension connector
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 1x HDMI 1.4b
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery and DisplayPort 1.2)
Optional Ports (configured)
  • 1x Smart card reader
  • 1x Nano-SIM & microSD card slot (WWAN model)
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
Smart Card Reader
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Security Slot
Other Security
ThinkShutter camera cover
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Depot
Included Upgrade
None
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR 8.0
  • TCO
  • EPEAT Gold
  • RoHS compliant
Mil-Spec Test
MIL-STD-810G military test passed
