Description

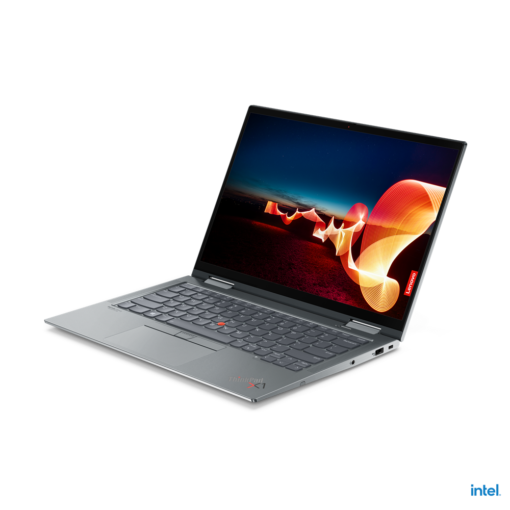

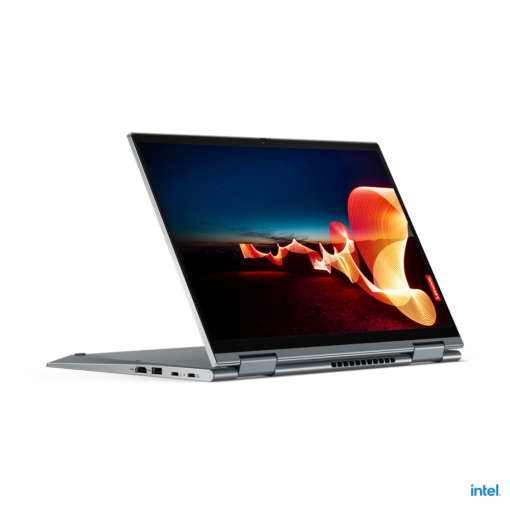

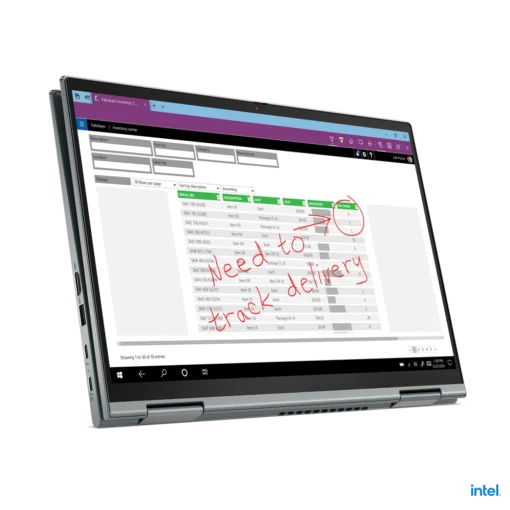

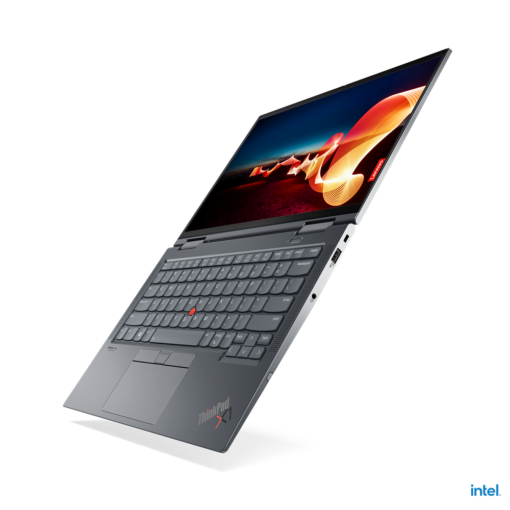

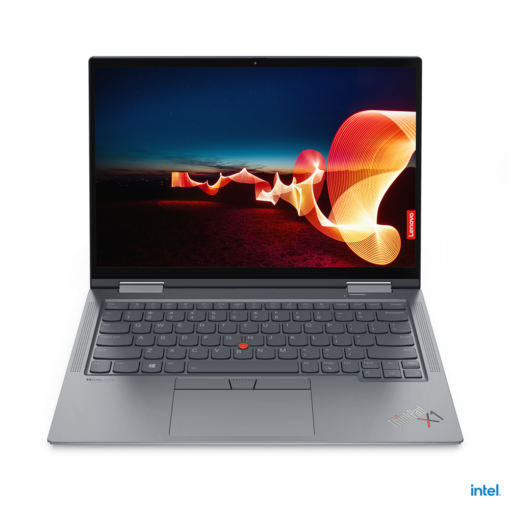

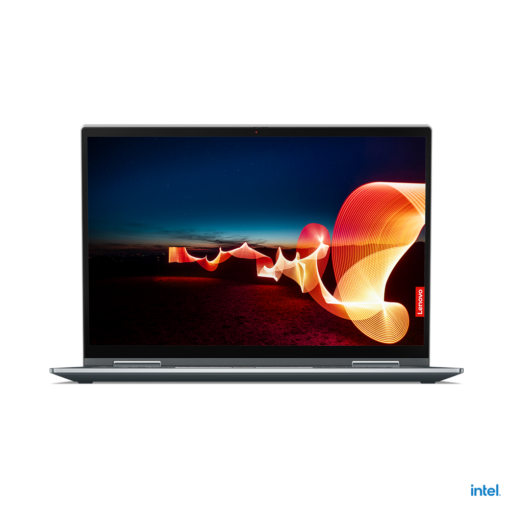

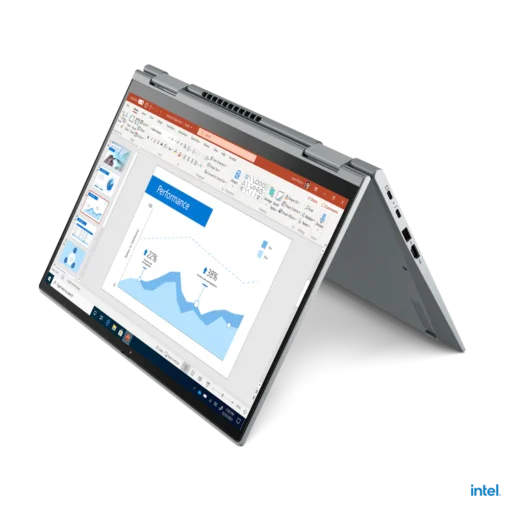

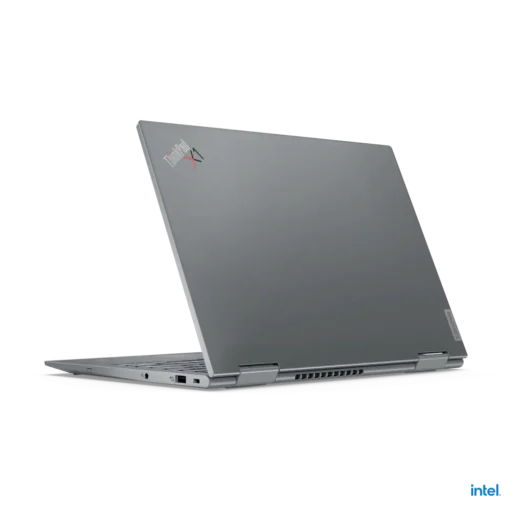

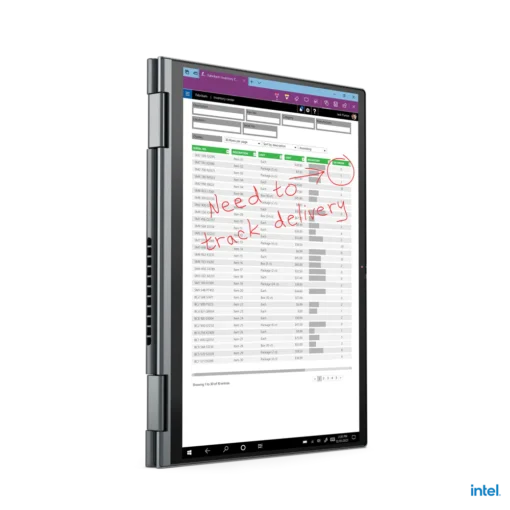

ThinkPad X1 Yoga Gen 6

PERFORMANCE
Processor
Intel Core i7-1165G7 (4C / 8T, 2.8 / 4.7GHz, 12MB)
Graphics
Integrated Intel Iris Xe Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR4x-4266
Memory Slots
Memory soldered to systemboard, no slots, 8-channel
Max Memory
16GB soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe 4.0×4 Performance NVMe Opal2
Storage Support
One drive, up to 2TB M.2 2280 SSD
Storage Slot
One M.2 2280 PCIe 4.0 x4 slot
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3306 codec
Speakers
Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos
Camera
HD 720p + IR Hybrid with Privacy Shutter
Microphone
4x, Array
Battery
Integrated 57Wh
Max Battery Life
MobileMark 2014: 21.0 hr MobileMark 2018: 16.1 hr JEITA 2.0: 23.9 hr
Power Adapter
65W USB-C Slim (3-pin)
DESIGN
Display
14″ WUXGA (1920×1200) IPS 500nits Anti-glare, Touch, ThinkPad Privacy Guard
Touchscreen
10-point Multi-touch
Keyboard
Backlit, Turkish
Case Color
Storm Grey
Case Material
Aluminium (Top) + Aluminium (Bottom)
Pen
Lenovo Integrated Pen
Dimensions (WxDxH)
314.4 x 223 x 14.99 mm (12.38 x 8.78 x 0.59 inches)
Weight
Starting at 1.399 kg (3 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (Adapter Needed)
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.1
WWAN
Quectel EM120R-GL with Embedded eSIM
SIM Card
None
NFC
NFC
Standard Ports
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
  • 1x HDMI 2.0
  • 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)
1x Nano-SIM Card Slot
Docking
Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Yoga Gen 6
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Nano Security Slot
Other Security
  • Human Presence Detection
  • IR camera for Windows Hello
  • Privacy Guard with Privacy Alert
  • Camera privacy shutter
MANAGEABILITY
System Management
Non-vPro
SERVICE
Base Warranty
3-year, Courier or Carry-in
Included Upgrade
CO2 Offset 0.5 ton (5WS0Z74930), 3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • EPEAT Gold
  • ENERGY STAR 8.0
  • TCO Certified
  • RoHS compliant
Other Certifications
  • Intel Evo Platform
  • TÜV Rheinland Dynamic Privacy Filter (DPF) Certification (Privacy Guard models)
Mil-Spec Test
MIL-STD-810H military test passed
