Description

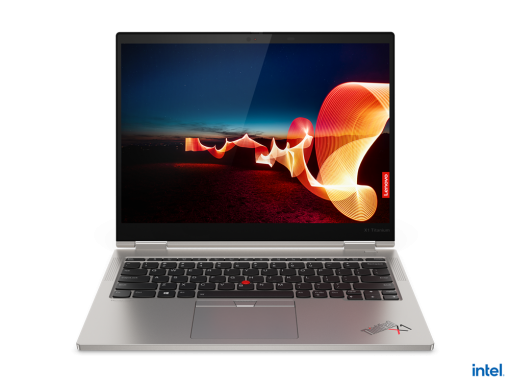

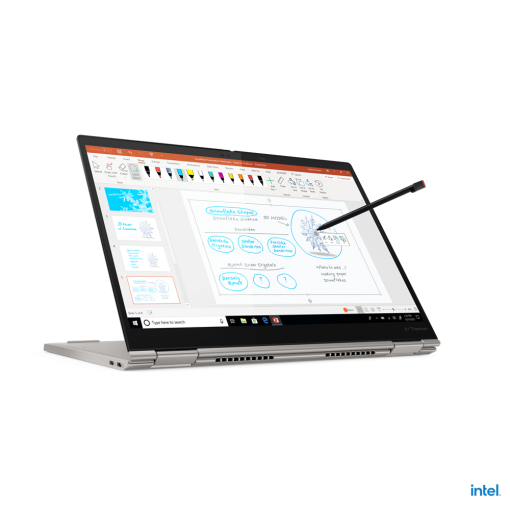

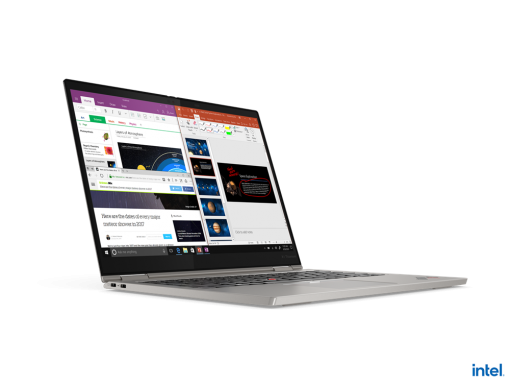

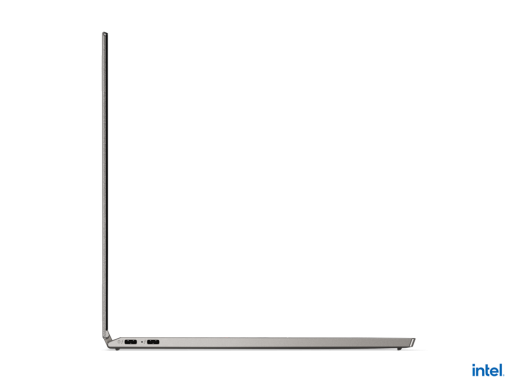

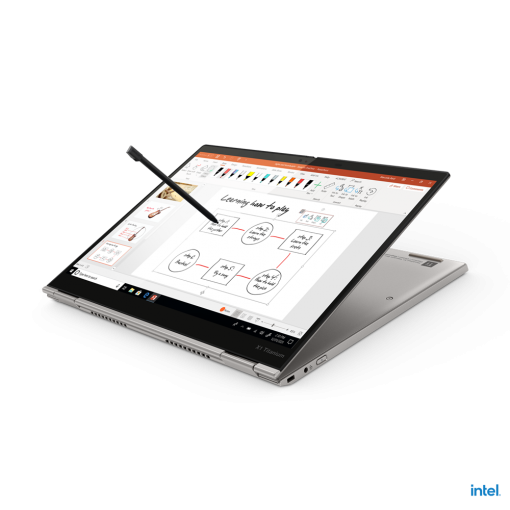

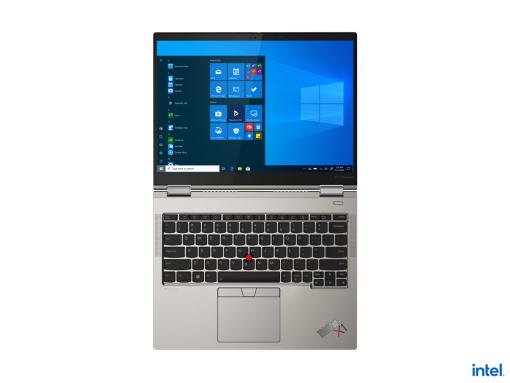

ThinkPad X1 Titanium Yoga Gen 1

Part Number : 20QA002TTX

PERFORMANCE
Processor
Intel Core i7-1160G7 (4C / 8T, 2.1 / 4.4GHz, 12MB)
Graphics
Integrated Intel Iris Xe Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR4x-4266, POP Memory
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
16GB soldered memory, not upgradable
Storage
512GB SSD M.2 2242 PCIe 3.0×4 NVMe
Storage Support
One drive, up to 1TB M.2 2242 SSD
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3286 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos
Camera
720p + IR with Privacy Shutter
Microphone
4x, Array
Battery
Integrated 44.5Wh
Max Battery Life
MobileMark 2018: 11.7 hr JEITA 2.0: 16.8 hr
Power Adapter
65W USB-C Slim
DESIGN
Display
13.5″ QHD (2256×1504) IPS 450nits AR (anti-reflection) / AS (anti-smudge), Touch
Touchscreen
10-point Multi-touch
Keyboard
Backlit, Turkish
Case Color
Titanium
Case Material
Titanium + Carbon Fiber (Top), Magnesium-aluminium (Bottom)
Pen
Pen Upgradable
Dimensions (WxDxH)
297.5 x 232.7 x 11.5 mm (11.71 x 9.16 x 0.45 inches)
Weight
1.15 kg (2.54 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M via Optional Adapter
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.2
WWAN
None
SIM Card
None
NFC
None

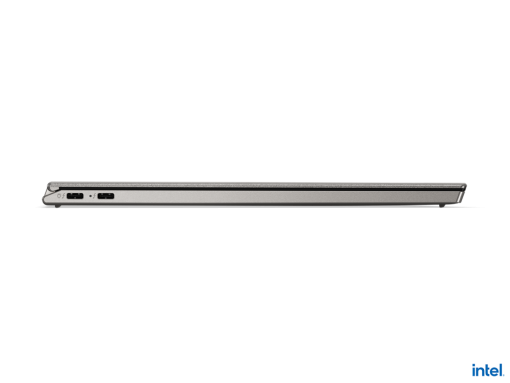

Standard Ports
  • 1x headphone / microphone combo jack (3.5mm)
  • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
Optional Ports (configured)
None
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Nano Security Slot
Other Security
  • IR camera for Windows Hello
  • Camera privacy shutter
  • Human Presence Detection
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Depot
Included Upgrade
3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR 8.0
  • TCO
  • EPEAT Gold
  • RoHS compliant
Other Certifications
Intel Evo Platform
Mil-Spec Test
MIL-STD-810H military test passed
