Description

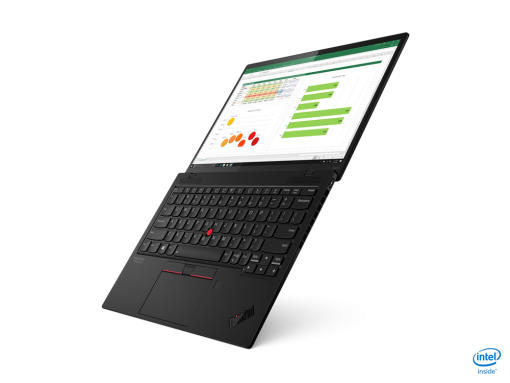

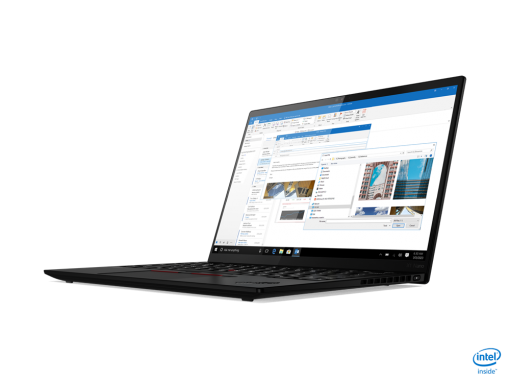

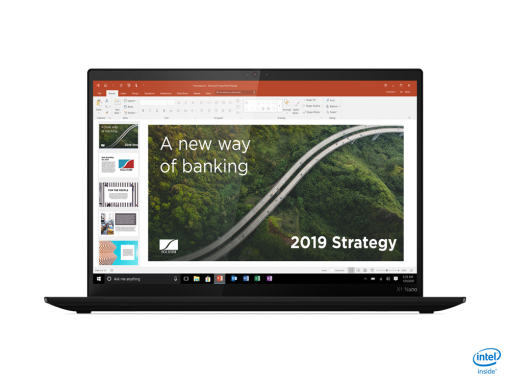

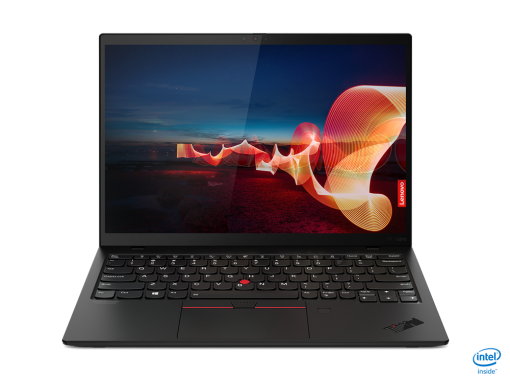

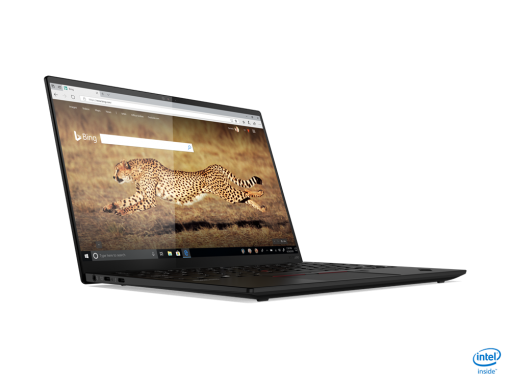

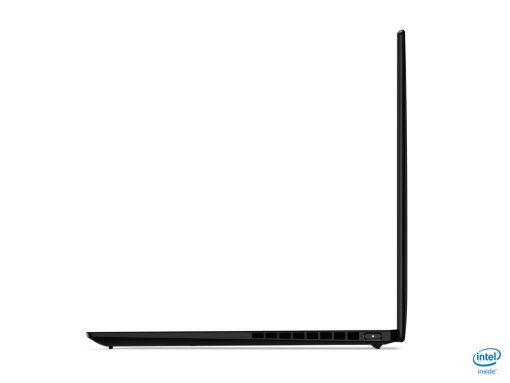

ThinkPad X1 Nano Gen 1

Part Number : 20UN002LTX

PERFORMANCE
Processor
Intel Core i7-1160G7 (4C / 8T, 2.1 / 4.4GHz, 12MB)
Graphics
Integrated Intel Iris Xe Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR4x-4266
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
16GB soldered memory, not upgradable
Storage
1TB SSD M.2 2242 PCIe 3.0×4 NVMe
Storage Support
One drive, up to 1TB M.2 2242 SSD
Card Reader
No card reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3306 codec
Speakers
Stereo speakers, 2W x2 woofers and 1W x2 tweeters, Dolby Atmos
Camera
720p + IR with Privacy Shutter
Microphone
4x, 360°
Battery
Integrated 48Wh
Max Battery Life
MobileMark 2018: 13.6 hr JEITA 2.0: 22.87 hr
Power Adapter
65W USB-C Slim
DESIGN
Display
13″ 2K (2160×1350) IPS 450nits Anti-glare
Touchscreen
None

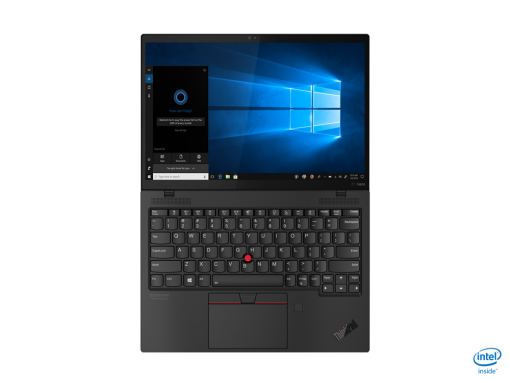

Keyboard
Backlit, Turkish
Case Color
Black, Paint
Case Material
Carbon Fiber (Top), Magnesium Alloy (Bottom)
Dimensions (WxDxH)
Dimensions Models
Non-touch models
292.8x 207.7 x 13.87-16.7 mm (11.53 x 8.18 x 0.55-0.66 inches)
Touch models
292.9x 207.8 x 14.27-17.2 mm (11.53 x 8.18 x 0.56-0.68 inches)
Weight
907 g (1.99 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M via Optional Adapter
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.2
WWAN
None
SIM Card
None
NFC
None

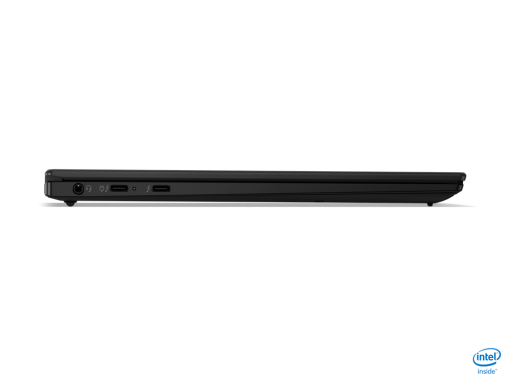

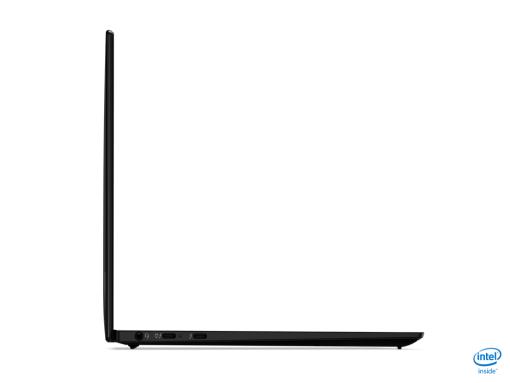

Standard Ports
  • 1x headphone / microphone combo jack (3.5mm)
  • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Other Security
  • Human Presence Detection
  • IR camera for Windows Hello
  • ThinkShutter camera cover
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Depot
Included Upgrade
3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR 8.0
  • TCO
  • EPEAT Gold
  • RoHS compliant
Other Certifications
Intel Evo Platform
Mil-Spec Test
MIL-STD-810H military test passed
