Description

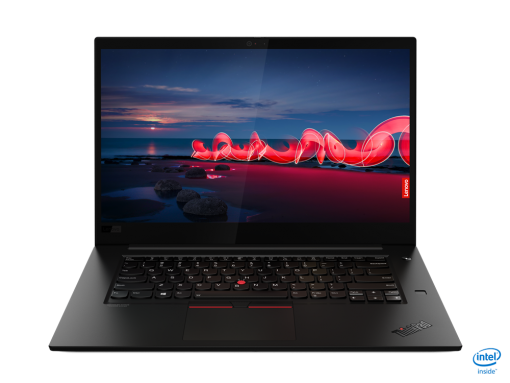

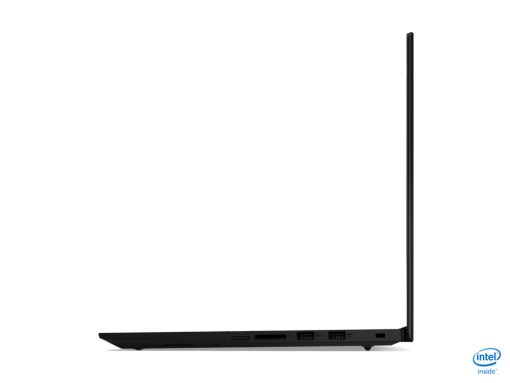

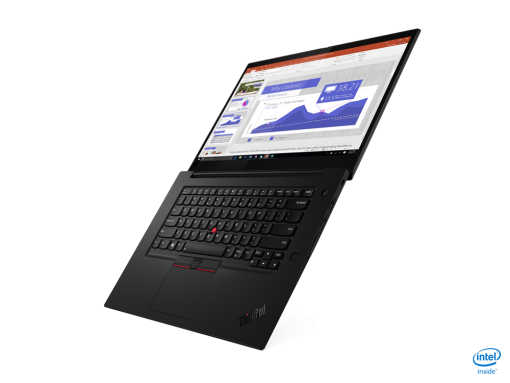

ThinkPad X1 Extreme Gen 3

Part Number : 20TK000DTX

PERFORMANCE
Processor
Intel Core i7-10750H (6C / 12T, 2.6 / 5.0GHz, 12MB)
Graphics
NVIDIA GeForce GTX 1650 Ti Max-Q 4GB GDDR6
Chipset
Intel WM490
Memory
1x 16GB SO-DIMM DDR4-2933
Memory Slots
Two DDR4 SO-DIMM slots, dual-channel capable
Max Memory
Up to 64GB DDR4-2933
Storage
512GB SSD M.2 2280 PCIe 3.0×4 NVMe Opal2
Storage Support
Up to two drives, 2x M.2 SSD • M.2 2280 SSD up to 2TB • RAID 0/1 support
RAID Preset
None
Card Reader
SD Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3286 codec
Speakers
Stereo speakers, 2W x2, Dolby Atmos, 3-magnet
Camera
IR & 720p with ThinkShutter
Microphone
2x, Array
Battery
Integrated 80Wh
Max Battery Life
MobileMark 2014: 15.6 hr MobileMark 2018: 11.8 hr
Power Adapter
135W Slim Tip (3-pin)
DESIGN
Display
15.6″ UHD (3840×2160) IPS 600nits Anti-glare, 100% Adobe RGB, Dolby Vision, HDR
Touchscreen
None
Color Calibrator
Factory Color Calibration

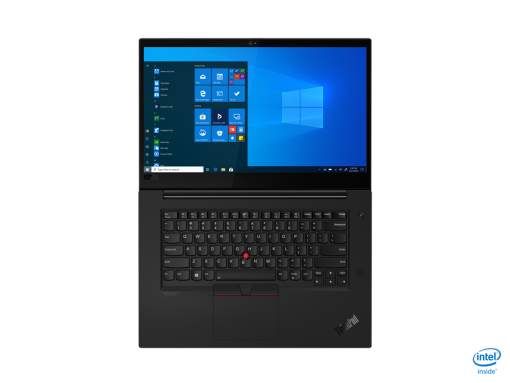

Keyboard
Backlit, Turkish

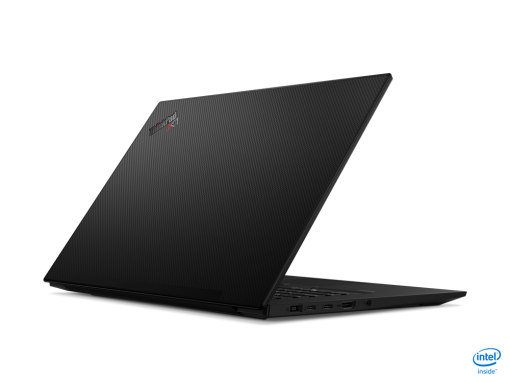

Case Color
Black, Weave
Case Material
CF Hybrid (Top), Aluminium Alloy (Bottom)
Pen
No Support
Dimensions (WxDxH)
361.8 x 245.7 x 18.4 mm (14.24 x 9.67 x 0.72 inches)
Weight
1.7 kg (3.75 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (Adapter Needed)
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.2
WWAN
None
SIM Card
None
NFC
None

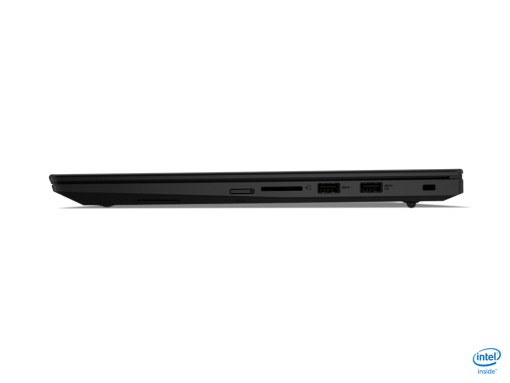

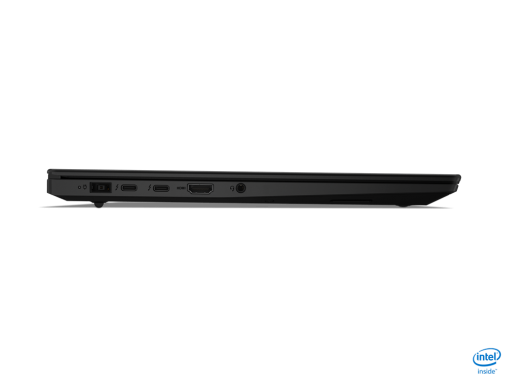

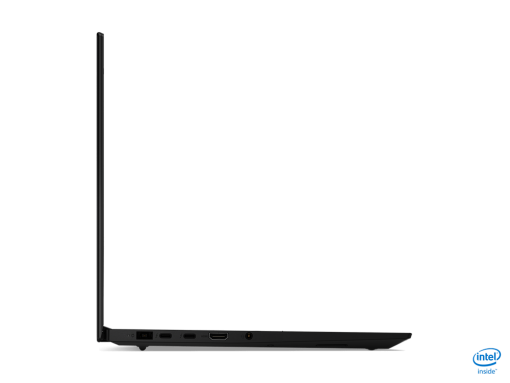

Standard Ports
  • 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data transfer, Power Delivery and DisplayPort 1.4, for discrete graphics models)
  • 1x Power connector
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x HDMI 2.0
  • 1x SD card reader
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Security Slot
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Depot
Included Upgrade
3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
USB-C to Ethernet Adapter
CERTIFICATIONS
Green Certifications
  • ENERGY STAR 8.0
  • TCO
  • EPEAT Gold
  • RoHS compliant
Mil-Spec Test
MIL-STD-810G military test passed
