Description

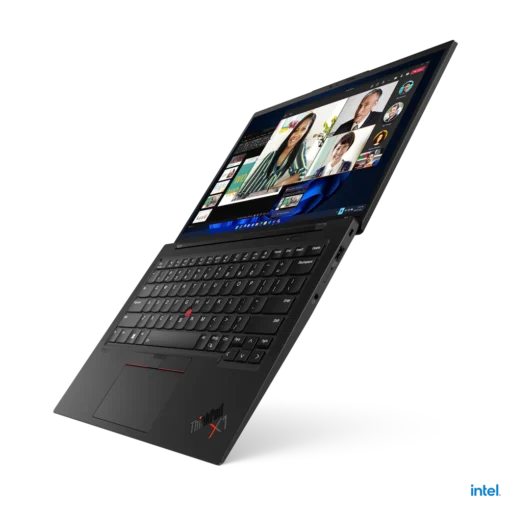

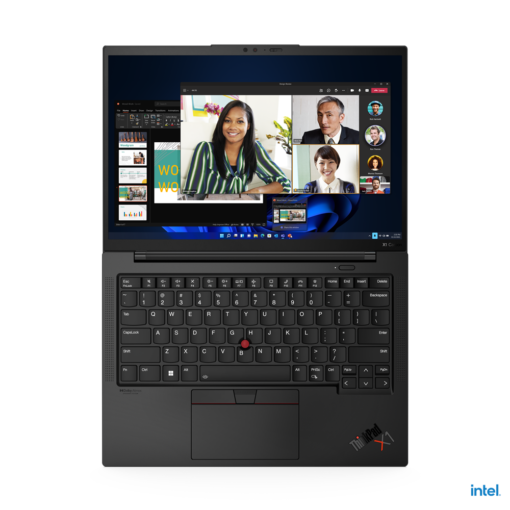

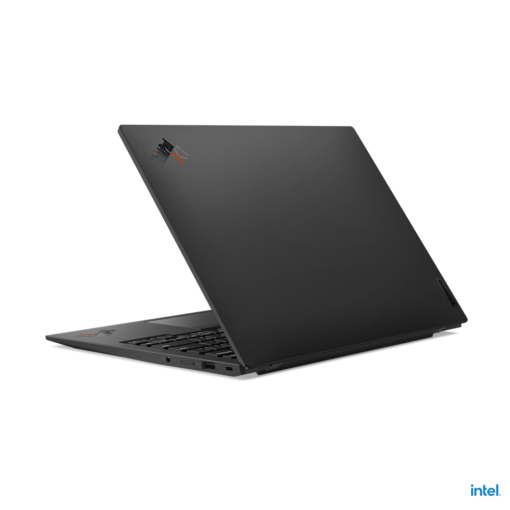

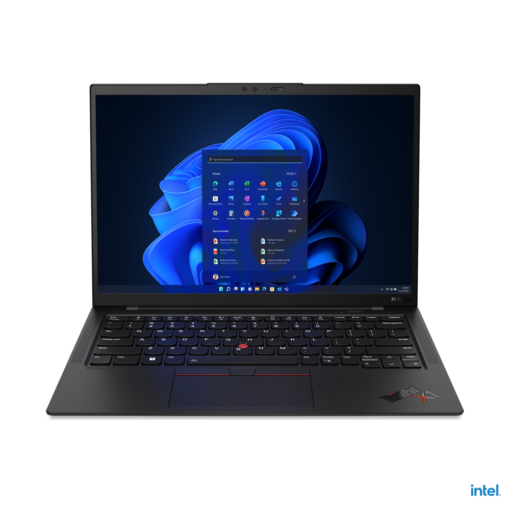

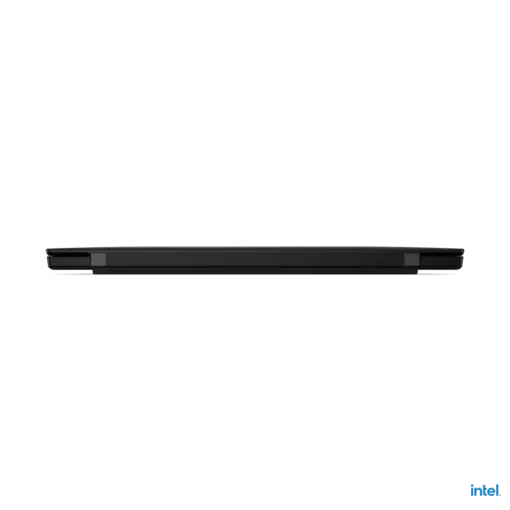

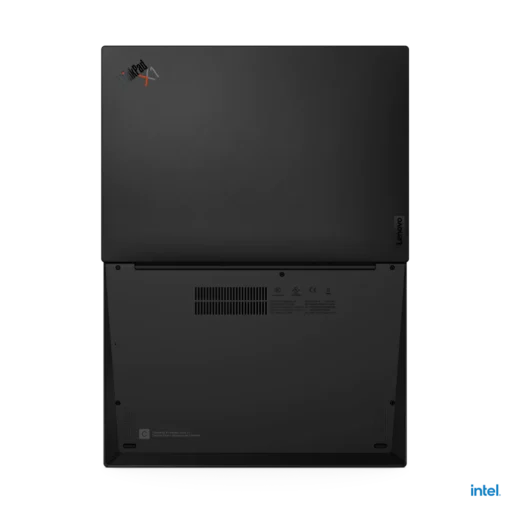

ThinkPad X1 Carbon Gen 10

Part Number : 21CB006TTX

PERFORMANCE
Processor
Intel Core i7-1260P, 12C (4P + 8E) / 16T, P-core 2.1 / 4.7GHz, E-core 1.5 / 3.4GHz, 18MB
Graphics
Integrated Intel Iris Xe Graphics
Chipset
Intel SoC Platform
Memory
32GB Soldered LPDDR5-5200
Memory Slots
Memory soldered to systemboard, no slots, 8-channel
Max Memory
32GB soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe 4.0×4 Performance NVMe Opal2
Storage Support
One drive, up to 2TB M.2 2280 SSD
Storage Slot
One M.2 2280 PCIe 4.0 x4 slot
Card Reader
No Card Reader
Optical
None
Audio Chip
High Definition (HD) Audio, Realtek ALC3306 codec
Speakers
Stereo speakers, 2W x2 woofers and 0.8W x2 tweeters, Dolby Atmos
Camera
FHD 1080p + IR Hybrid with Privacy Shutter
Microphone
4x, Array
Battery
Integrated 57Wh
Power Adapter
65W USB-C Slim (3-pin)
DESIGN
Display
14″ WUXGA (1920×1200) IPS 400nits Anti-glare, 100% sRGB, Low Power
Touchscreen
None
Keyboard
Backlit, Turkish
Case Color
Black, Paint
Case Material
Carbon Fiber (Top), Aluminium (Bottom)

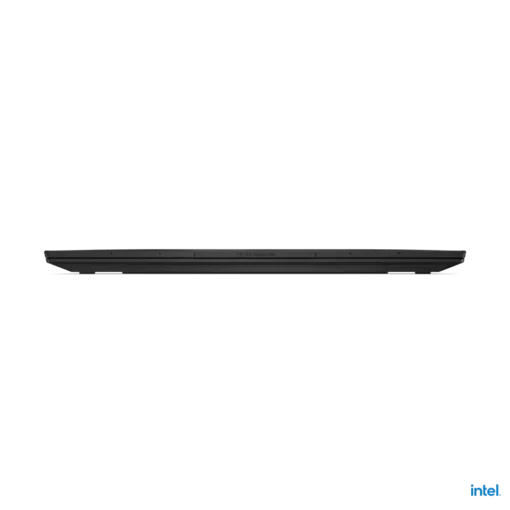

Dimensions (WxDxH)
315.6 x 222.5 x 15.36 mm (12.43 x 8.76 x 0.60 inches)
Weight
Starting at 1.12 kg (2.48 lbs)
SOFTWARE
Operating System
Windows 11 Pro 64, Turkish / English
Bundled Software
Intel Connectivity Performance Suite
CONNECTIVITY
Ethernet
No Onboard Ethernet
WLAN + Bluetooth
Intel AX211 Wi-Fi 6E, 2×2 + BT5.1
WWAN
WWAN Upgradable to 4G
SIM Card
None
NFC
NFC

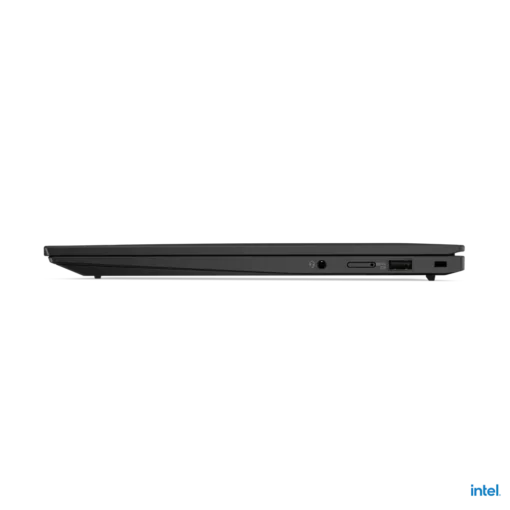

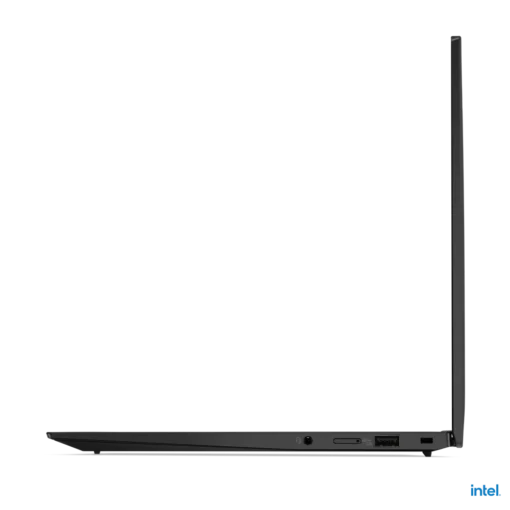

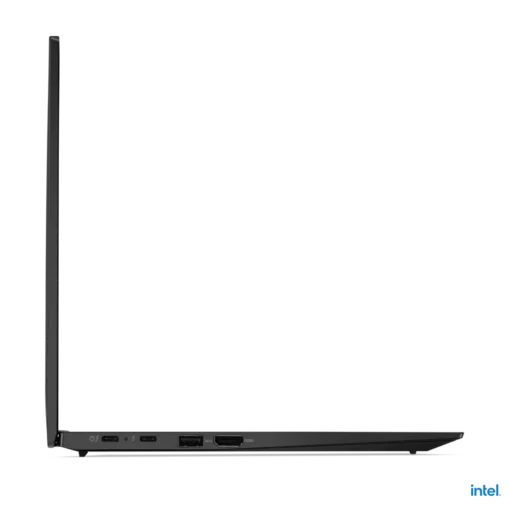

Standard Ports
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 2x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
  • 1x HDMI, up to 4K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
Optional Ports (configured)
1x Nano-SIM Card Slot
Docking
Various docking solutions supported via Thunderbolt / USB-C. For more compatible docking solutions, please visit Docking for ThinkPad X1 Carbon Gen 10
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks
Kensington Nano Security Slot, 2.5 x 6 mm
Other Security
  • IR camera for Windows Hello
  • Camera privacy shutter
  • Glance by Mirametrix
  • Tile ready
MANAGEABILITY
System Management
Non-vPro
SERVICE
Base Warranty
3-year, Courier or Carry-in
Included Upgrade
3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • EPEAT Gold
  • ENERGY STAR 8.0
  • ErP Lot 3
  • TCO Certified 9.0
  • RoHS compliant
Other Certifications
  • Eyesafe Certified
  • Intel Evo Platform
Mil-Spec Test
MIL-STD-810H military test passed
