Description

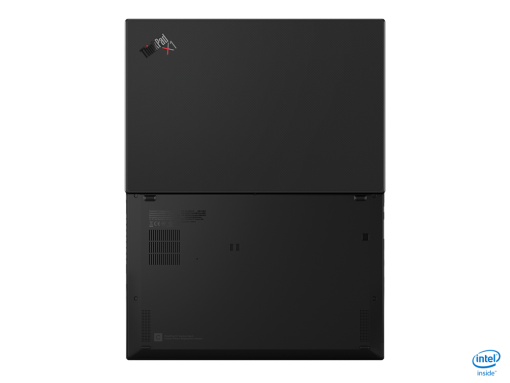

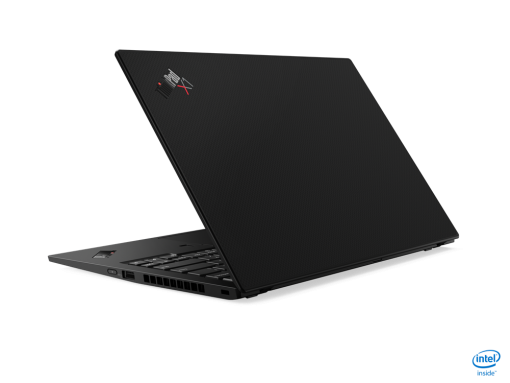

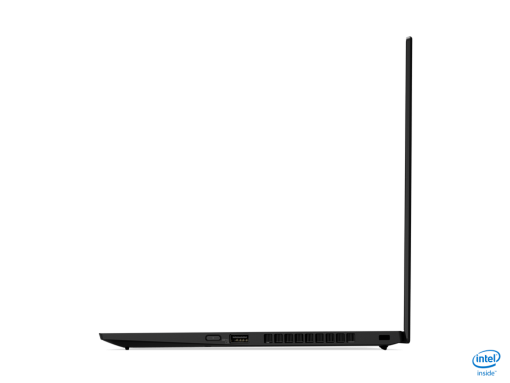

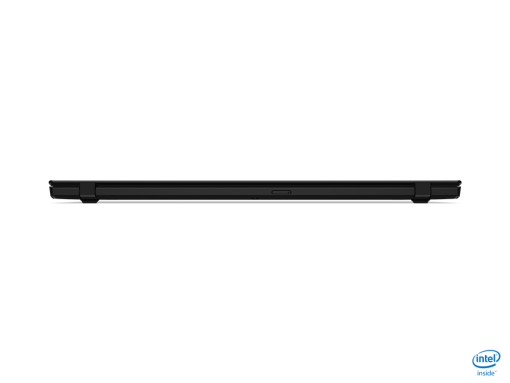

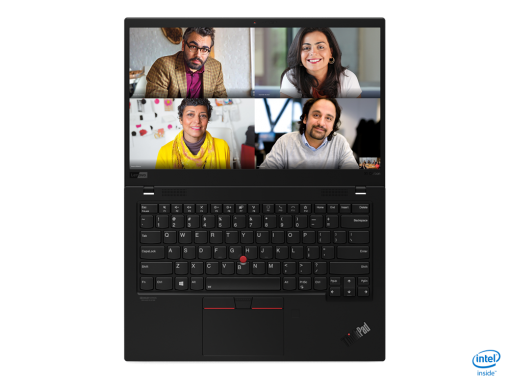

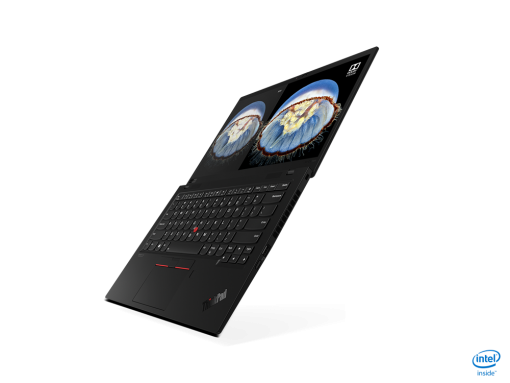

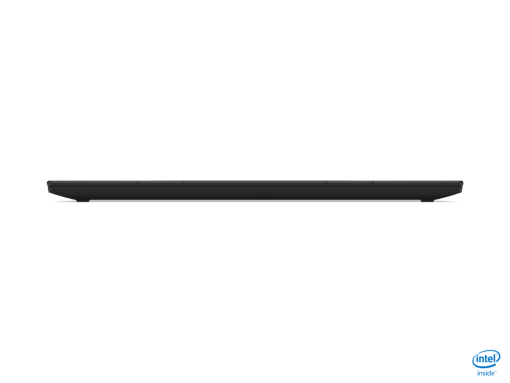

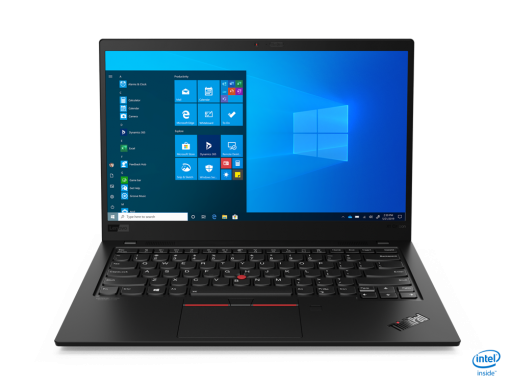

ThinkPad X1 Carbon Gen 8

Part Number : 20U9006BTX
PERFORMANCE
Processor
Intel Core i7-10510U (4C / 8T, 1.8 / 4.9GHz, 8MB)
Graphics
Integrated Intel UHD Graphics
Chipset
Intel SoC Platform
Memory
16GB Soldered LPDDR3-2133
Memory Slots
Memory soldered to systemboard, no slots
Max Memory
Soldered memory, not upgradable
Storage
512GB SSD M.2 2280 PCIe 3.0×4 NVMe Opal2
Storage Support
One drive, up to 2TB M.2 2280 SSD, optional Intel Optane Memory integrated with SSD, M.2
Card Reader
Not configured
Optical
None
Audio Chip
High Definition (HD) Audio, USI 4551-513711-00 codec
Speakers
Stereo speakers, 2W x2 and 0.8W x2, Dolby Atmos
Camera
720p + IR with ThinkShutter
Microphone
4x, 360°
Battery
Integrated 51Wh
Max Battery Life
MobileMark 2014: 19.5 hr MobileMark 2018: 13.8 hr
Power Adapter
65W USB-C Slim
DESIGN
Display
14″ UHD (3840×2160) IPS 500nits Glossy, HDR 400, Dolby Vision
Touchscreen
None
Keyboard
Backlit, Turkish
Case Color
Black, Weave
Case Material
Carbon Fiber (Top), Magnesium Alloy (Bottom)
Dimensions (WxDxH)
323 x 217 x 14.95 mm (12.72 x 8.54 x 0.59 inches)
Weight
1.09 kg (2.4 lbs)
SOFTWARE
Operating System
Windows 10 Pro 64, Turkish / English
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M via Optional Adapter
WLAN + Bluetooth
Intel AX201 11ax, 2×2 + BT5.1
WWAN
Fibocom L850-GL
SIM Card
None
NFC
NFC

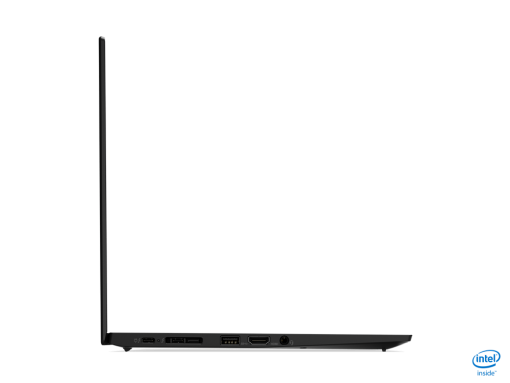

Standard Ports
  • 1x USB 3.2 Gen 1
  • 1x USB 3.2 Gen 1 (Always On)
  • 2x USB-C 3.2 Gen 2 / Thunderbolt 3 (support data, PD 3.0 and DP 1.2)
  • 1x HDMI 1.4b
  • 1x Ethernet extension connector
  • 1x headphone / microphone combo jack (3.5mm)
  • 1x side docking connector
Optional Ports
1x Nano-SIM card slot (WWAN models)
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0
Fingerprint Reader
Touch Style, Match-on-Chip
Physical Locks
Kensington Security Slot
Other Security
  • IR camera for Windows Hello
  • ThinkShutter camera cover
MANAGEABILITY
System Management
None
SERVICE
Base Warranty
3-year, Depot
Bundled Service
3Y Premier TP Halo WHB (CPN) (5WS1B09495)
ACCESSORIES
Bundled Accessories
ThinkPad Ethernet Extension Adapter Gen 2
CERTIFICATIONS
Green Certifications
  • EPEAT Gold
  • ENERGY STAR 8.0
  • TCO
  • RoHS
Other Certifications
Athena certified
Mil-Spec Test
MIL-STD-810G military test passed
